Summary of Day 41:

*Continuation from choice of radix:

Okay, so yesterday we discussed how radix sort works and how it can be parallelized using a $1$-bit radix. Each iteration of the algorithm focused on sorting the “keys” based on single bit, which required $N$ iterations for $N$-bit keys.

While this approach is straight forward, it can be inefficient due to the large number of iterations required.

So, today we’ll explore how the choice of radix implements the efficiency of radix sort and how using a multi-bit radix can reduce the number of iterations and improve performance.

Why choose multi-bit radix?

1-bit Radix Recap:

• In a $1$-bit radix sort, each iteration sorts keys into two buckets ($0$ and $1$) based on a single bit.
• For 4-bit keys, this requires 4 iterations to fully sort the keys.
• Each iteration involves:
  • Extracting the bit.
  • Performing an exclusive scan.
  • Sorting keys into two buckets.

2-bit Radix Example:

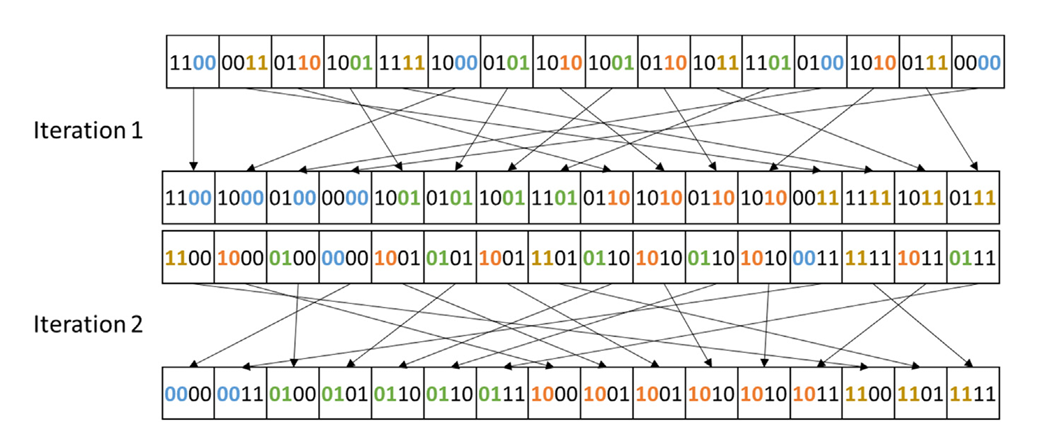

Fig 41_01: 2-bit radix sort example

• With a $2$-bit radix, each iteration considers two bits instead of one.
• For $4$-bit keys, only $2$ iterations are needed:
  • First iteration: Sort by the lower two bits (00, 01, 10, 11).
  • Second iteration: Sort by the upper two bits (00, 01, 10, 11).
• This reduces the number of iterations by half compared to a $1$-bit radix.

Advantages of Using a Larger Radix:

Fewer Iterations

• A larger radix reduces the total number of iterations required to fully sort the keys.
• For example:
  • A $1$-bit radix requires $N$ iterations for $N$-bit keys.
  • A $2$-bit radix requires only $N/2$ iterations.
  • An $r$-bit radix requires $N/r$ iterations.

Reduced Overhead

• Fewer iterations mean:
  • Fewer kernel launches.
  • Fewer global memory accesses.
  • Fewer global exclusive scan operations.

Improved Performance

• By reducing the number of iterations, we minimize overhead and improve overall performance.

Challenges with Larger Radix 😔:

While using a larger radix reduces the number of iterations, it introduces new challenges:

More Buckets

• A larger radix results in more buckets:
  • A $1$-bit radix has $2^1 = 2$ buckets (0 and 1).
  • A $2$-bit radix has $2^2 = 4$ buckets (00, 01, 10, 11).
  • An $r$-bit radix has $2^r$ buckets.
• Each thread block must manage more local buckets in shared memory, which increases complexity.

Smaller Buckets

• With more buckets, each bucket contains fewer keys on average.
• This reduces opportunities for memory coalescing when writing local buckets to global memory.

Larger Global Exclusive Scan Table

• The global exclusive scan table grows with the number of buckets and thread blocks:
  • For a $1$-bit radix, the table has two rows (one for each bucket).
  • For a $2$-bit radix, the table has four rows (one for each bucket).
  • For an $r$-bit radix, the table has $2^r$ rows.
• This increases the overhead of performing the global exclusive scan.

Optimizing Memory Coalescing:

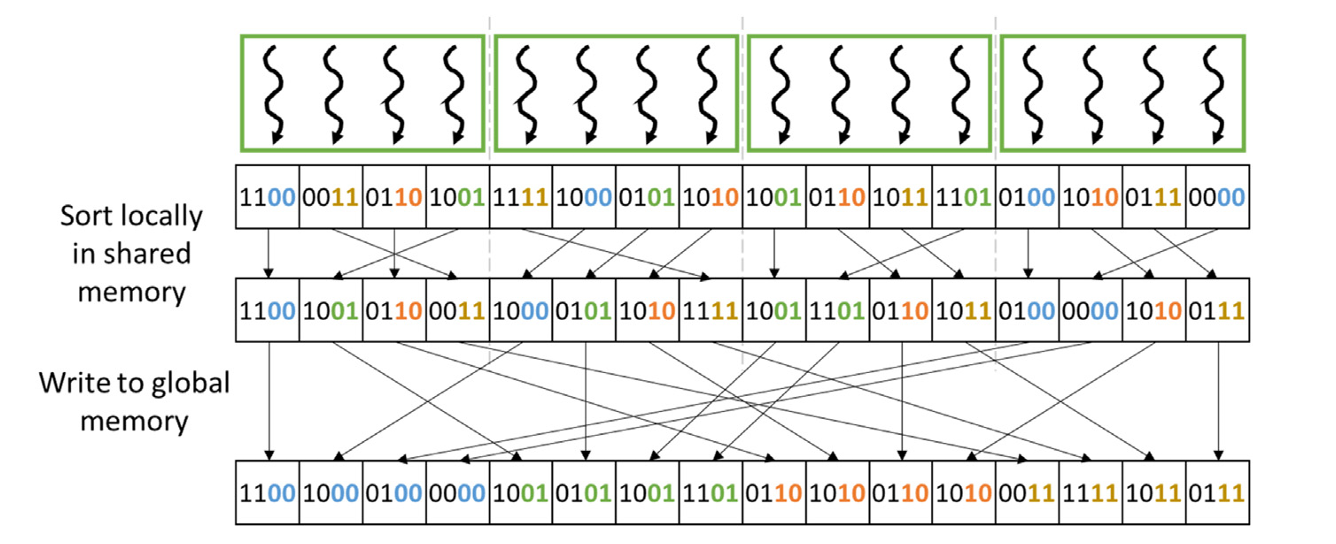

Fig 41_02: Parallelizing a radix sort iteration and optimizing it for memory coalescing using the shared memory for a 2-bit radix.

The above figure (41_02) shows how memory coalescing is optimized for a multi-bit radix:

1. Each thread block sorts its keys locally in shared memory using a multi-bit radix (e.g., $2$ bits).
   • This involves performing multiple local exclusive scans (one for each bit in the multi-bit radix).
   • For example, a $2$-bit radix requires two local exclusive scans (one for each bit).
2. After sorting locally, each thread block writes its local buckets to global memory in a coalesced manner.

Determining Global Bucket Positions

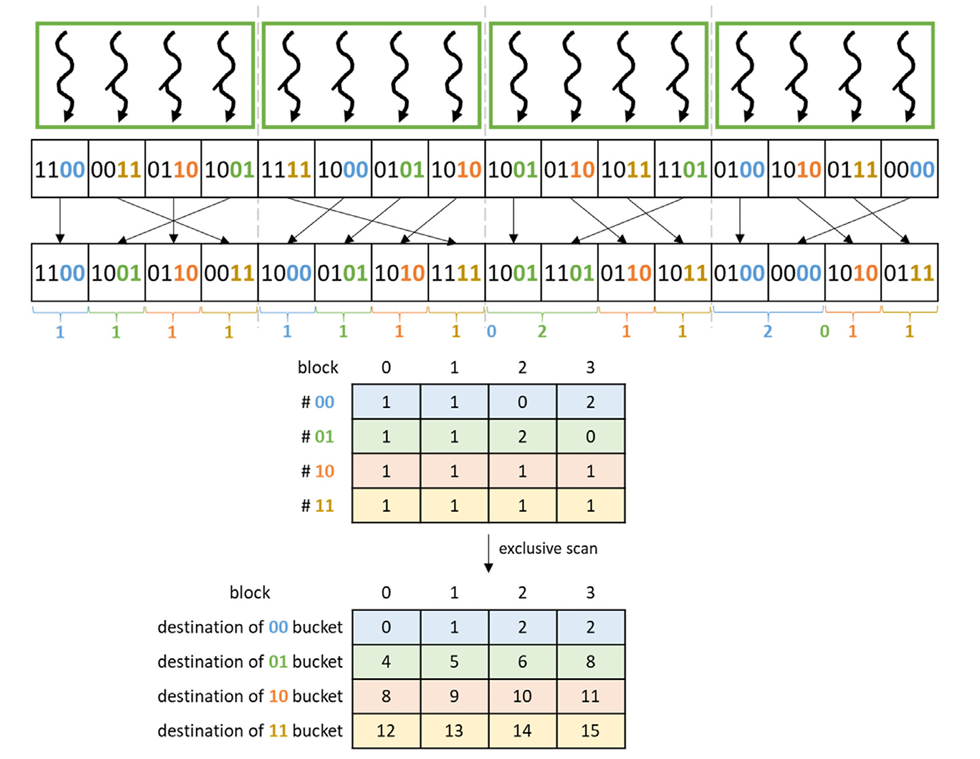

Fig 41_03: Finding the destination of each block’s local buckets for a 2-bit radix

Figure 41_03 illustrates how to find the destination of each block’s local buckets in global memory:

1. Each thread block calculates the size of its local buckets (e.g., #$00$, #$01$, #$10$, #$11$).
2. These sizes are stored in a table with one row per bucket and one column per block.
3. An exclusive scan is performed on this table to calculate the starting position of each bucket in global memory.

Summary Table representing the tradeoffs in choosing the radix value: | Radix Value | Advantages | Disadvantages | |————-|————-|—————| | Small (eg. 1) | Simple implementation | More iterations; more space-time complexity | | Large (> 1) | Fewer iterations; reduced overhead | More buckets; smaller bucket sizes; reduced coalescing | | Very Large | Minimal iterations; minimal kernel launches | High global exclusive scan overhead |

Thread Coarsening to Improve Coalescing

ⓘ Two similar sounding terms detected:

• Thread Coalescing: Grouping memory accesses from threads into a single transaction for efficiency.
• Thread Coarsening: Assigning more work to each thread to reduce overhead and improve performance.

Okay, let’s shift gears and focus on thread coarsening, a powerful technique to enhance memory coalescing in parallel radix sort.

Building upon our previous discussions about multi-bit radix and memory coalescing, we’ll explore how thread coarsening addresses the trade-offs between parallelism and memory access efficiency.

The Problem: Small Local Buckets:

• As we discussed, using more thread blocks increases parallelism, but it comes at a cost:
  • Each thread block has fewer keys.
  • Local buckets become smaller.
  • Fewer opportunities for coalescing.
• In essence, the overhead from non-coalesced writes can negate the benefits of parallelism ⚠️!!

So, the solution? Thread Coarsening 🙂‍↕️

What is thread coarsening??

Well, we studied before about this in earlier chapters as well… let’s just revise once again:

• Thread coarsening involves assigning each thread to multiple keys instead of just one.
• This reduces the number of active threads but increases the workload per thread.
• Think of it as having fewer librarians but giving each librarian more books to sort.

Benefits of Thread Coarsening

1. Larger Local Buckets:
   • Each thread processes more keys, leading to larger local buckets within the shared memory.
2. Improved Memory Coalescing:
   • Larger buckets expose more opportunities for coalesced writes when writing to global memory.
   • Consecutive threads are more likely to access consecutive memory locations.
3. Reduced Overhead for Global Exclusive Scan:
   • Fewer thread blocks mean a smaller table for the global exclusive scan.
   • This reduces the overhead associated with the scan operation.

<img src="./images/2_bit_radix_Thread_coarsening.png", width="500px">

Fig 41_04: Radix sort for a 2-bit radix with thread coarsening to improve memory coalescing

Okay, let’s compare this figure with previous (Fig 41_02):

• Figure 41_02 showed a scenario where each thread processed a single key.

• Figure 41_04, on the other hand, illustrates thread coarsening:

  • fewer thread blocks, but each block handles more keys.
  • local buckets are noticeably larger.
  • greater likelihood that consecutive threads will write to consecutive memory locations when writing local buckets to global memory.

How this works.

1. Assign Multiple Keys per Thread:
   • Determine how many keys each thread should process (e.g., 2, 4, 8).
2. Local Sorting:
   • Each thread sorts its assigned keys into local buckets in shared memory.
3. Exclusive Scan on Local Buckets:
   • Perform a local exclusive scan to determine the offset of each key within its bucket.
4. Global Exclusive Scan (on Block Bucket Sizes):
   • Calculate the sizes of local buckets for each thread block and perform a global exclusive scan to determine the starting positions of the global buckets.
5. Write to Global Memory:
   • Threads calculate their global destination based on their local bucket offset and the global bucket starting position.
   • Each thread writes its assigned keys to the calculated location in global memory.

Trade-offs of Thread Coarsening:

1. Decreased Parallelism
   • With fewer active threads, the degree of parallelism is reduced.
   • If the number of thread blocks becomes too small, the GPU may not be fully utilized.
2. Increased Complexity
   • Thread coarsening increases the complexity of the code, as each thread must manage multiple keys.

Click Here to redirect towards radix sort with thread coarsening implemented!

Parallel Merge Sorting

Key-TakeAways:

• Comparison based sorting algorithm.
• Divides input into smaller segments, sorts them independently and merges in parallel.

<img src="./images/parallel_merge_sort.png", width="500px">

Fig 41_05: Parallelizing merge sort.

The above Figure 41_ 05 shows how merge sort can be parallelized:

• The input list is divided into multiple segments.
• Each segment is sorted independently in the first stage.
• In subsequent stages, pairs of segments are merged in parallel until the entire list is sorted.

Click Here to redirect towards code implementation
