Summary of Day 16:

*Start of Chapter 7: Convolution

Convolution: What is it?

Convolution is an array operation where each output element is a weighted sum of an input element and its neighboring elements, using a filter array (convolution filter). Convolutions can be applied to 1D (audio), 2D (images), or 3D (video) data.

---

1D Convolution

• A 1D convolution operates on a 1D array, where each output element is computed as a weighted sum of an input element and its surrounding elements, based on a convolution filter.
• The filter size is always odd $(2r + 1)$, where $r$ is the filter radius, meaning the calculation is symmetric around the central element.
• Example:
  • Input: $x= [8,2,5,4,1,7,3]$
  • Filter: $f= [1,3,5,3,1]$
  • Output $y$ is computed as an inner product between $x$ and $f$ over the corresponding positions.
  • For example;
    • $y[2] = (1\times 8) + (3 \times 2) + (5 \times 5) + (3 \times 4)+ (1 \times 1) = 52$

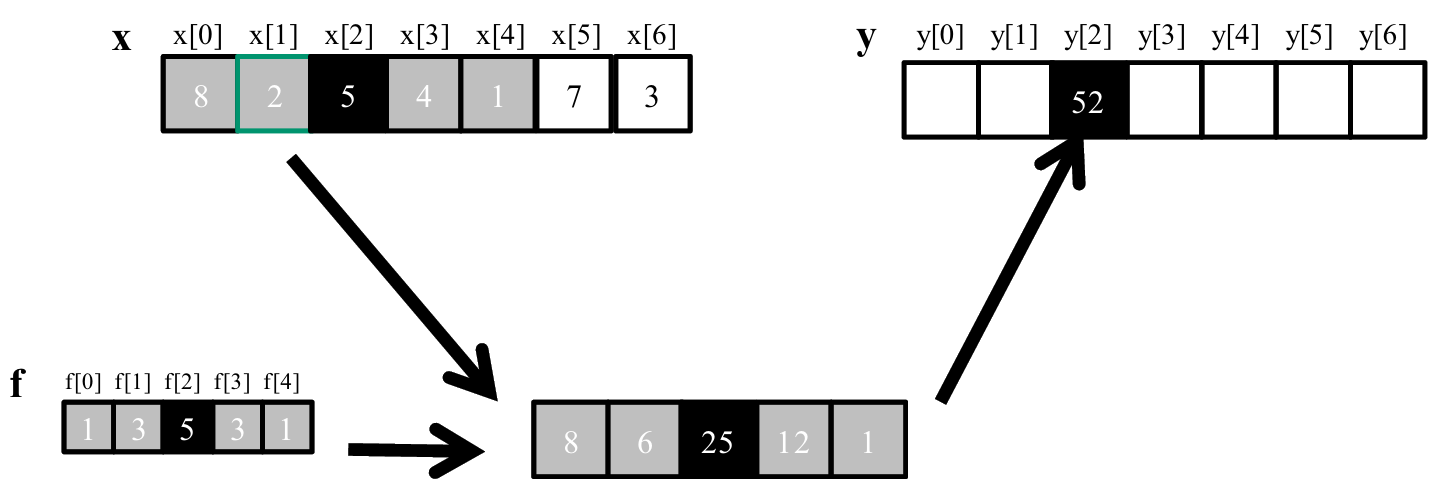

    Fig 16.01: 1D Convolution Example illustratory diagram.

    Boundary Conditions in 1D Convolution

• At array boundaries, missing elements must be handled:
  • Zero-padding: Assume missing values are $0$ (commonly used in audio processing).
  • Edge-padding: Extend the edge value to fill missing elements.
• Example: $y[1]$ is computed with a missing left-side element assumed to be $0$.

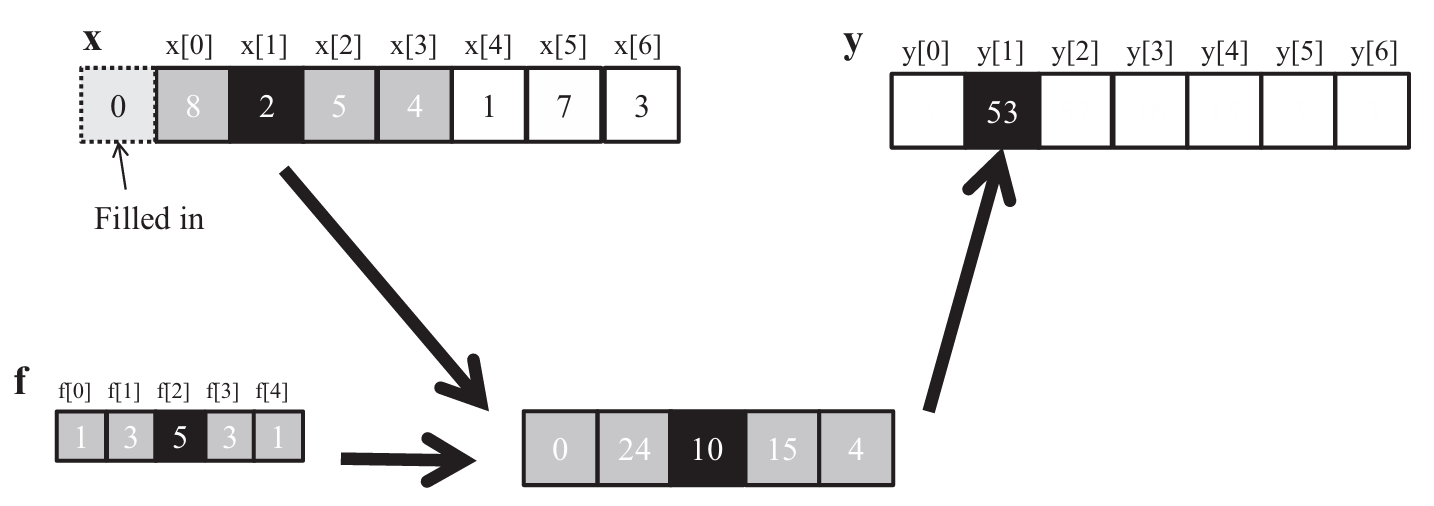

  Fig 16.02: 1D Convolution Boundary Condition

  Click here to see the code implementation for 1D Convolution with Boundary Condition (Zero padded) enabled.

---

2D Convolution

• In image processing, convolution is applied to 2D arrays (matrices) where each pixel interacts with its neighbors.
• A 2D filter of size $(2r_{x} + 1, 2r_{y} + 1)$ determines the weighted sum calculation.

  P_{y,x} = \sum_{j= -r_{y}}^{r_y} \sum_{k= -r_x}^{r_x} f_{j+r_y, k+r_x} \times N_{y+j, x+k}


• Example:
  • A $5×5$ filter is applied to a matrix, and each output element is computed as a sum of element-wise products of the filter and a submatrix from the input.

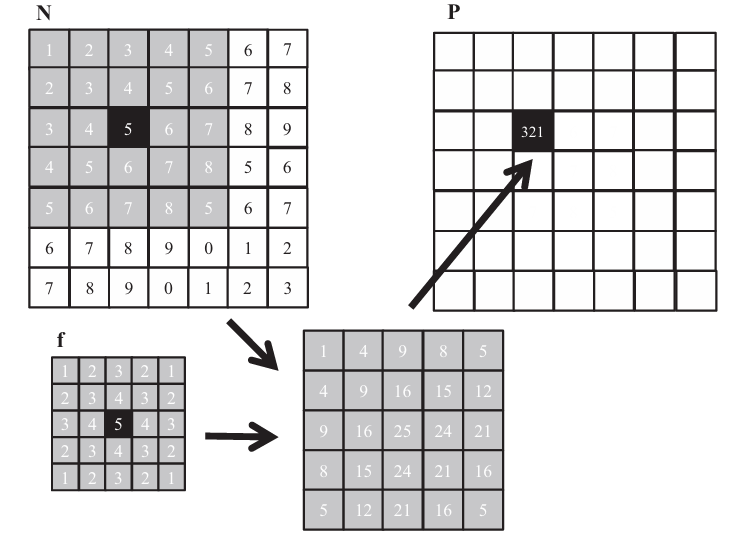

    Fig 16.03: 2D Convolution Example

    \begin{aligned}
      P_{2,2} = \space & N_{0,0} \times M_{0,0} + N_{0,1} \times M_{0,1} + N_{0,2} \times M_{0,2} + N_{0,3} \times M_{0,3} + N_{0,4} \times M_{0,4} +\\
    & N_{1,0} \times M_{1,0} + N_{1,1} \times M_{1,1} + N_{1,2} \times M_{1,2} + N_{1,3} \times M_{1,3} + N_{1,4} \times M_{1,4} +\\
    & N_{2,0} \times M_{2,0} + N_{2,1} \times M_{2,1} + N_{2,2} \times M_{2,2} + N_{2,3} \times M_{2,3} + N_{2,4} \times M_{2,4} +\\
    & N_{3,0} \times M_{3,0} + N_{3,1} \times M_{3,1} + N_{3,2} \times M_{3,2} + N_{3,3} \times M_{3,3} + N_{3,4} \times M_{3,4} +\\
    & N_{4,0} \times M_{4,0} + N_{4,1} \times M_{4,1} + N_{4,2} \times M_{4,2} + N_{4,3} \times M_{4,3} + N_{4,4} \times M_{4,4} \\
    \end{aligned}


    = 1+4+9+8+5+4+9+16+15+12+9+16+25+24+21+8+15+24+21+16+5+12+21+16+5


    = 321


    Boundary Conditions in 2D Convolution

• Boundaries exist in both x and y dimensions, leading to more complex conditions.
• Missing elements at edges can be handled similarly to 1D:
  • Zero-padding: Assume missing values are 0.
  • Edge-padding: Use the nearest pixel value.
• These boundary conditions impact the efficiency of tiling in parallel computing.

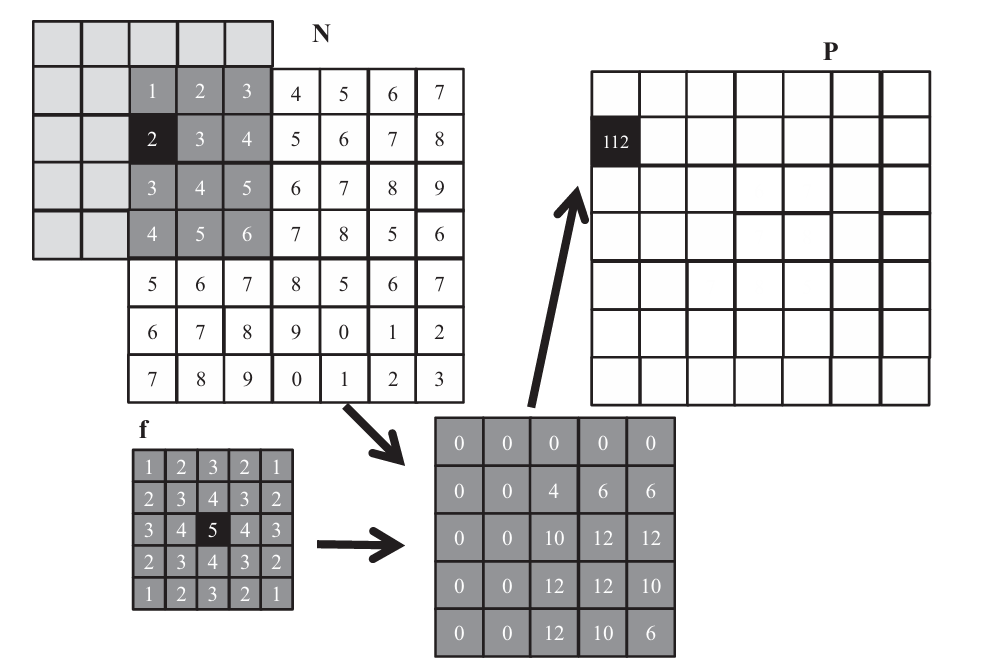

Fig 16.04: 2D Convolution Boundary Condition

Click here to see the code implementation for 2D Convolution with Boundary Condition (Zero padded) enabled.

---
